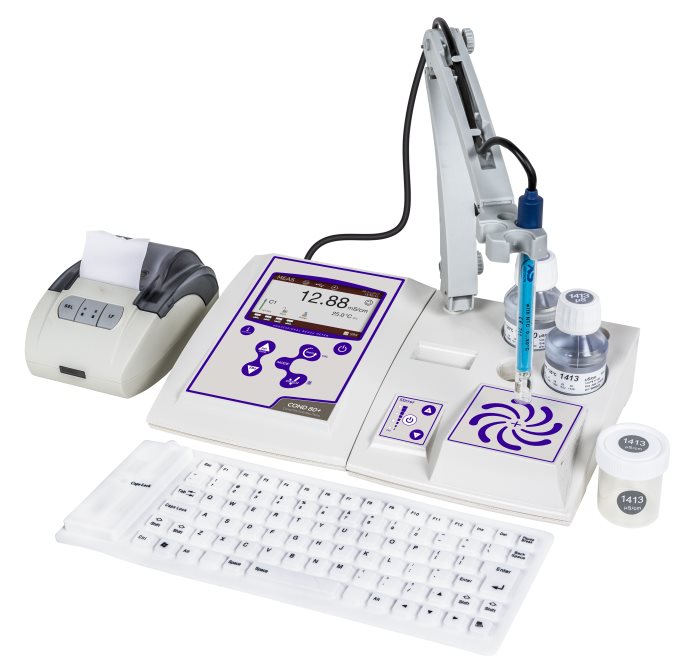

COND 80+ Conductivity mete

COND 80+ Conductivity mete

Complete with conductivity cell VPT 1 Platinum glass with 2 electrodes (C = 1) with built-in temperature probe, electrode holder support, external keyboard, magnetic stirrer with adjustable speed , 2 calibration standards and power supply.

STANDARD FEATURES

Microprocessor digital bench conductivity meter with large backlit color graphic display, resolution 0.01 µS .
Automatic and manual calibration with recognition of 4 conductivity standards (84; 1413 µS, 12.88 and 111 mS) from 1 a4 points with calculation of the different cell constants and a standard defined by the user.
Automatic scale change, automatic and manual temperature compensation (0 … 100.0 ° C) with NT 55 probe. Reference temperature (15 … 30 ° C), linear temperature coefficient (0.00 … 10.00%) and non linear for ultra pure water.
Cell constant (C = 0.1-1-10.0) selectable. Display of the standards used for calibration on the display. Manual and automatic Data Logger function .
Memory / recall up to 1000 data with date / time according to GLP . Self-diagnosis messages, 2-electrode cell input.
Intuitive management of parameters via icons. Multilingual Italian menu included.
Entering company data, operator ID, sample ID and sensor ID via external keyboard (included).

Indication of the stability of the measurement. Recalibration alarm, self-diagnosis messages. Alphanumeric password for calibration management and memory deletion. 2 USB outputs for connecting external keyboard (included) and PC. RS232 port for printer connection. Magnetic stirrer with independent control (optional). Quick manual on-line. Free downloadable PC software. IP54 keyboard, 3-year warranty on the electronic part.

COND 80+

50003402

Other Features

Features

Compensation for ultra-pure water
Yes
PC communication
Yes
Printer connection
Yes
Stirring speed control
Independently controlled agitator
Cell constant selectable
0.1 / 1/10
Display
High definition color LCD, backlit
GLP
Yes
IP protection degree
IP 54
Online help
Yes
Entrances
BNC – RCA
Memory
1000 data
Multilingual
Eng – Ita – Deu – Esp – Fra – Cze
Output
USB – USB type B – RS232
Password
Yes, 4 alphanumeric characters
Calibration points Cond
1 … 4
Calibration report
Yes
Buffers recognized Cond
84 µS – 1413 µS – 12.88 mS – 111.8 mS – 1 user value
Calibration expiration timer
Yes
Cell type
2 rings

Power supplies

Supply
100 – 240 V / 50 – 60 Hz

Dimensions and weight

Instrument dimensions
324 x 185 x 56 mm
Instrument weight
1255 g
