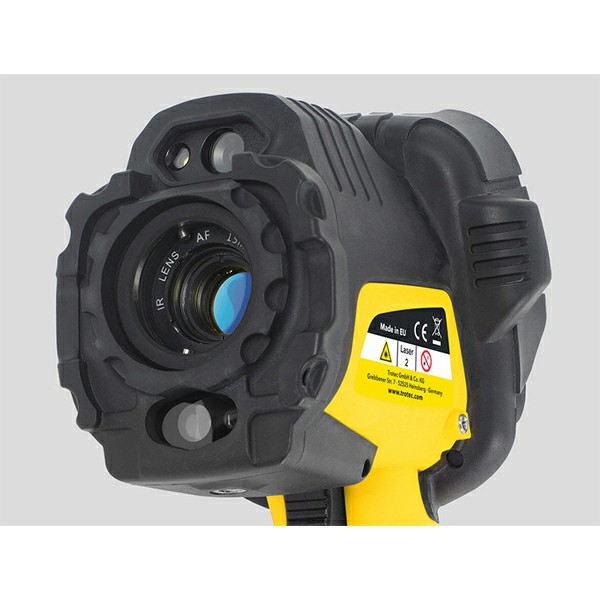

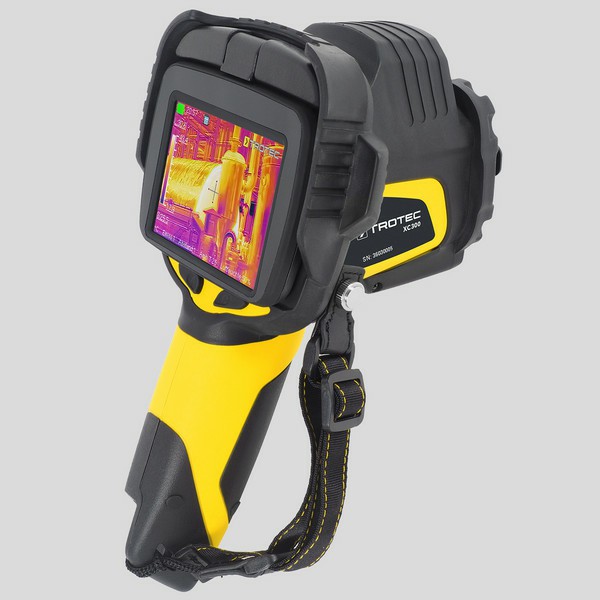

THERMAL IMAGING CAMERA XC300

THERMAL IMAGING CAMERA XC300

State-of-the-art technology in an integral IP54 housing including laser range finder, autofocus, 10x zoom and unique panofold touch display, which can be rotated virtually freely in all directions and allows direct input via touch.
Equipped with high-capacity Li-Ion battery for extremely long measuring inserts, the XC300 leaves nothing to be desired and enables users in industry and construction with exact precision real-time measurement in high native resolution, recordings of full-radiometric real-time videos with high-resolution detector, infrared real image combinations, daylight images , comprehensive on-site analysis and optional voice recording via Bluetooth – a high-quality analysis software for meaningful documentation is already included in the standard delivery.

STANDARD FEATURES
CAMERA XC300

3.110.003.043

Other Features

  • Measuring range (° C) min / max: -20-600
  • Accuracy max .: +/- 2 ° C or +/- 2% of the current reading
  • Detector resolution: 384×288
  • Spectral range: 8-14 μm
  • Thermal sensitivity (30 ° C): <= 0.05 ° C
  • Refresh rate: 50 / 60Hz
  • Geometric resolution: 1.1 mrad
  • Standard lens | Image performance radiometric: 24 ° x18 °
  • Minimum focus distance: 0.15 m
  • Field of view (FOV): 24 ° x18 °
  • Operating time: up to 8h
  • Storage medium: internal 16GB (32GB optional)
  • Operation – min./max. Temperature (° C): -20 -50
  • Warehouse – min./max. Temperature (° C): -40 -70
  • Humidity min./max. (non-condensing) (%): 10 -95
  • Degree of protection: IP54 IEC 529
  • Wavelength (μm): 635
  • Dimensions in mm (LxWxH): 130 x 125 x 250
  • Weight in kg: 0.85
