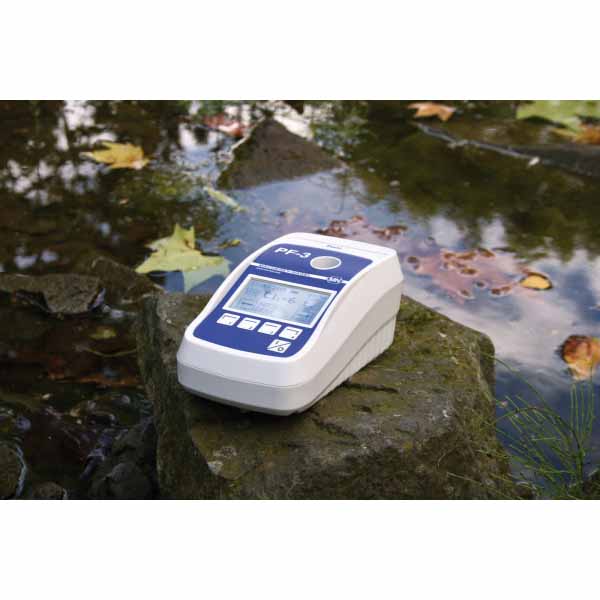

Pool analysis Compact photometer PF‑3

The compact photometer PF‑3 Pool is the smallest member of the MACHEREY‑NAGEL photometer family. The Pool version is especially designed for the need of pool analysis. It supports measurements of Total alkalinity, Cyanuric acid, pH and Chlorine. The handy and compact but strong design makes this lightweight an ideal companion for mobile analysis.


Type                        LED photometer with microprocessor control, self-test and auto calibration

Light source          LED

Optical system      LED + interference filters

Wavelength           450 nm / 530 nm / 590 nm

Wavelength accuracy            ± 2 nm, bandwidth at half transmission 10 nm–12 nm

Preprogrammed tests           NANOCOLOR tube tests, VISOCOLOR ECO tests and Powder Pillows

Cuvette slot                             Round tubes 16 mm OD

External light                          Insensitive to external light, fast measurements without cuvette slot cover

Data memory                          50 measurements

Display Backlit                        graphic display, 128 x 64 pixel

Auto off                                     Inactive or automatic shutdown after 5 min, 10 min, 15 min, 20 min

Internal quality                       control With NANOCONTROL NANOCHECK 2.0

Operation                                 Self-explanatory menu guidance, plastic foil keypad, test selection via parameter lists

Language                                  DE / EN / FR / ES / IT / HU / PL / PT / TR

Interfaces                                  Mini-USB

Update                                       Free via internet / PC

Availability: 100 in stock

Other Features

    • Simple

      • Intuitive operation with only four keys
      • Flat menu structure
      • Bright display for safe readings


      • Glass fiber reinforced housing for extreme durability
      • Water- and dustproof according to IP 68
      • Shock-resistant optics


      • Various case solutions including reagents
      • Additional parameters available f.o.c.
      • Compatible with VISOCOLOR ECO tests, VISOCOLOR Powder Pillows and NANOCOLOR tests
