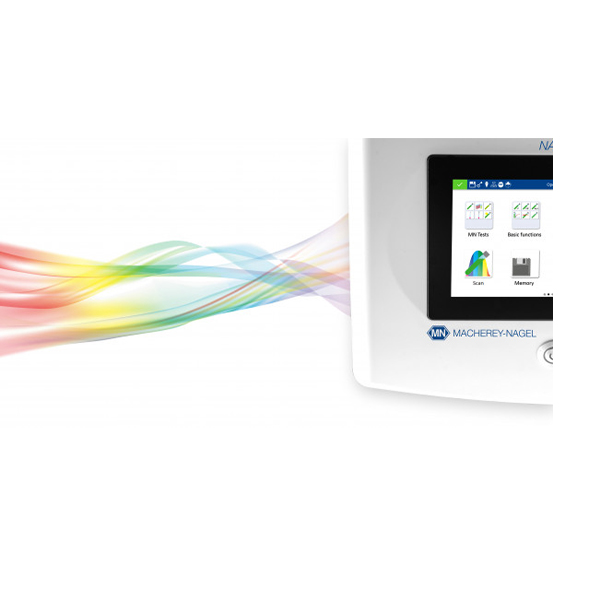

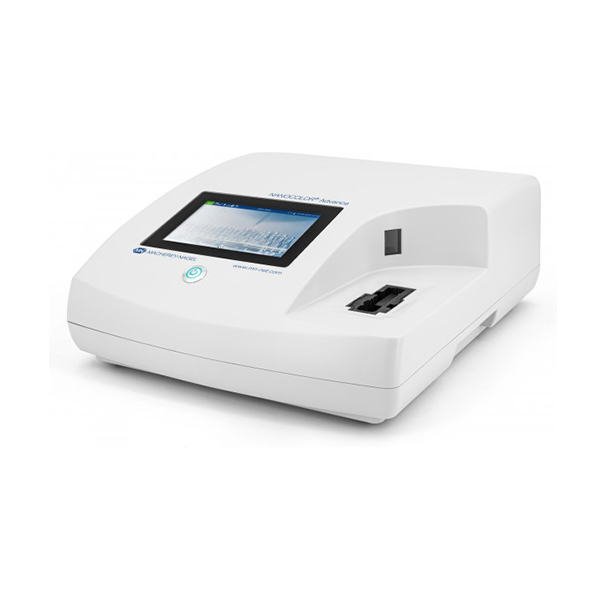

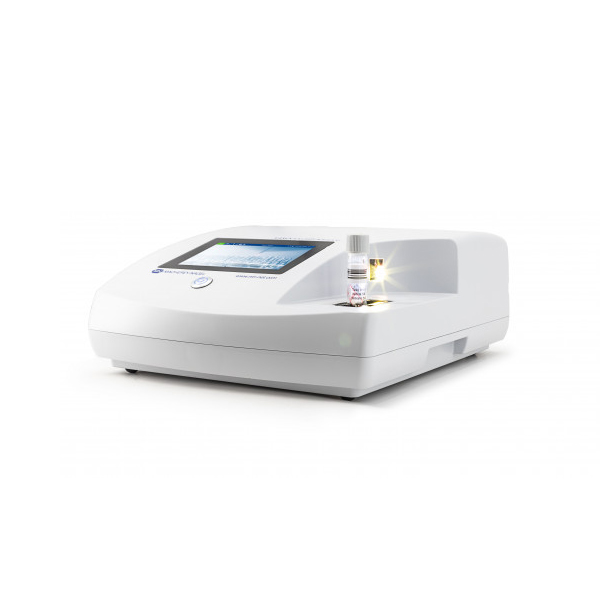

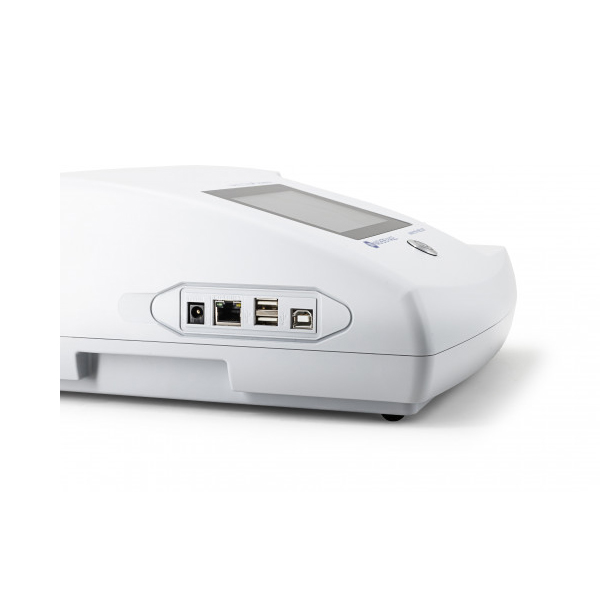

NANOCOLOR Advance Spectrophotometer

The spectrophotometer NANOCOLOR Advance combines the most important features of our portable compact photometer PF-12Plus and our high-precision spectrophotometer NANOCOLOR VIS II. It provides precise and reliable measurement results in the daily laboratory routine and can also be used mobile due to its rechargeable battery. With its wavelength spectrum of 340 – 800 nm it allows the measurement of all photometrically evaluable test kits from MACHEREY-NAGEL. The NANOCOLOR Advance can therefore be used universally in the entire spectrum of water and wastewater analysis.


Brand                       NANOCOLOR
Type                          Spectrophotometer with reference detector technology (RDT)
Light source          Halogen lamp
Optical system      Monochromator
Wavelength            340 nm–800 nm
Wavelength accuracy             ± 2 nm
Wavelength resolution              1 nm
Wavelength reproducibility  ± 0.1 nm
Wavelength calibration            Automatic
Wavelength selection                Automatic, barcode, manual
Scan speed                                    1 complete scan in less than 3 min


REF 919750

Other Features

  • Spectral bandwidth < 4 nm
    Photometric range +/- 3.0 E in the range 340–800 nm
    Photometric accuracy 0.003 E at 0.0–0.5 E; 1% at 0.5–2.0 E
    Photometric linearity < 0.5 % at 0.5–2.0 E; ≤ 1% at > 2 E with neutral glass filters at 546 nm
    Stray light < 0.5 %
    Measuring modes More than 200 pre-programmed tests and special methods; 99 fully programmable methods; absorbance; transmission; factor; kinetics; 2-point calibration; scan; nephelometric turbidity measurement
    Preprogrammed tests NANOCOLOR tube tests and standard tests, VISOCOLOR ECO test kits and Powder Pillows
    Turbidity measurement Nephelometric turbidity measurement (based on ISO 7027, 16 mm and 24 mm) 1–1000 NTU
    Cuvette slot Tube test 16 mm, 24 mm OD; Standard test 10 mm, 20 mm, 40 mm and 50 mm
