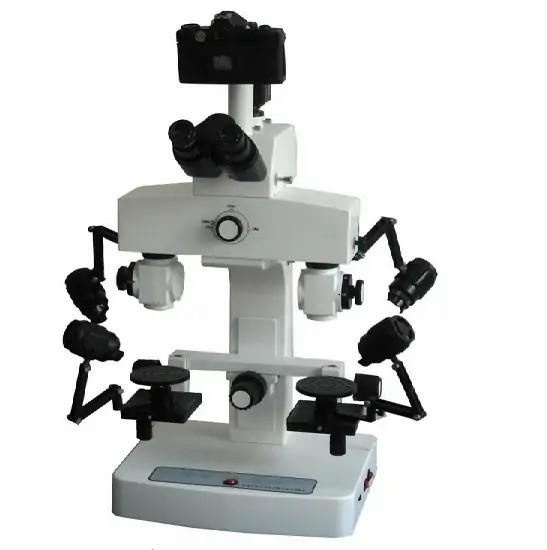

BSC-200 Comparison Microscope
BSC-200 Comparison Microscope
BSC-200 Comparison Microscope can observe two objects with a pair of eyepiece at the same time. Using field cutting, jointing and overlapping methods, two (or more) objects can be compared together. BSC-200 has clear image, high resolution and can identify tiny differences between objects accurately. It is basically used in forensic science, police schools and related departments.
STANDARD FEATURES
-
- Can be used for Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation.
- With inner changeable objectives, right and left objectives can be adjusted to consistency.
- Stage size: 100mm×100mm, Moving range: The transverse, longitudinal, vertical directions are 0-54mm, horizontal rotation 0 ° -360 °, stage inclined to any direction of 0 ° – 45 °.
- Two stages can be adjusted horizontally at the same time, moving range: 0-54mm.
- Coarse lifting range of 0 – 60mm.
- Equipped with 12V/50W air-cooled high power LED lamps, light intensity is adjustable.
- Polarizing attachment, used to eliminate stray and glare light.
- Coaxial illumination device(optional), used for observation of deep hole, small hole and smooth surface.
- With C-mount video attachment, digital cameras can be used for synchronous observation, images and videos can be saved and analyzed.
