Other Features
â– Hygienic, Industrial Design
â– Focus on Usability:
â– Best in class user interface
â– Best cleanability, maintainability
â– Easiest handling & installation

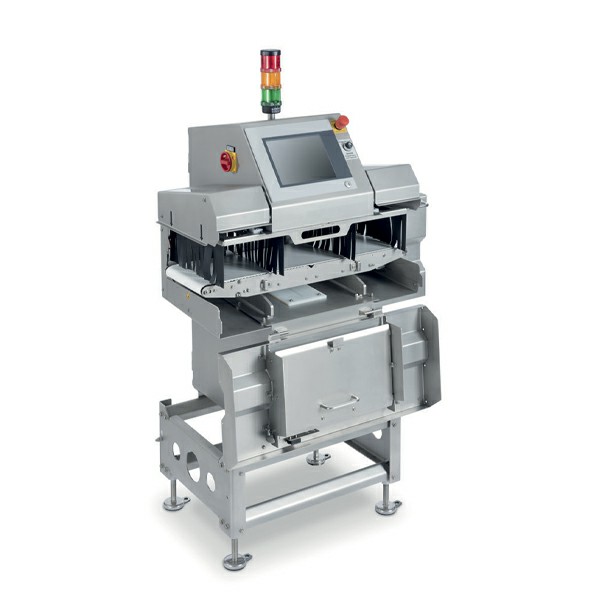

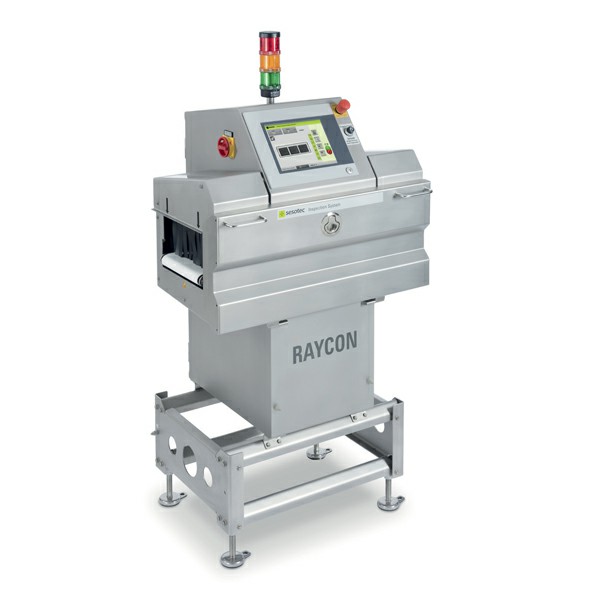

RAYCON EX1 Product inspection system for slim and packaged products
RAYCON EX1 Product inspection system for slim and packaged products
The RAYCON EX1 product inspection system detects all contaminants that due to their density, chemical composition, or mechanical dimensions absorb X-rays better than the surrounding product. For example this applies to metal, glass, ceramic, and stone contaminants in food materials. The RAYCON system also detects some types of plastics (e.g. PVC, rubber) as well as other product defects (e.g. trapped air, filling level).
STANDARD FEATURES
â– Inspection area: 220/120 (W x H)
â– Throughput: ~220 pcs./min. (product specific)
■Detection capability starting from Ø 0,6 mm
â– 60W Low-Energy X-Ray generator
■Highest operator safety due to low X-Ray emission < 0.5µSv/h
â– Total length of 800mm only
â– Modular and stable frame design allows easy transportation and safe installation
■Ambient temperatures from 0°C to +40°C
â– IP 54 protection class
â– Reject system: signal only (for customer specific reject systems
Availability: 100 in stock
