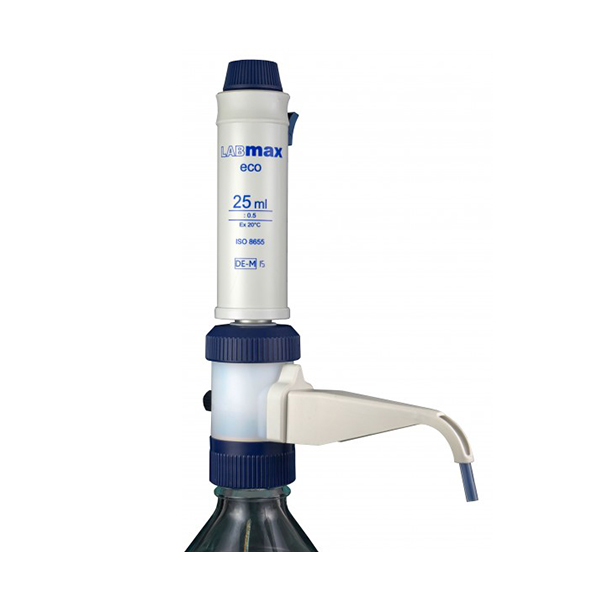

LABMAX Eco Bottle Top Dispenser

LABMAX Eco Bottle Top Dispenser

Dispensing with LABMAX eco is both economic and environmental friendly. This standard-dispenser is usable for nearly all applications of dispensing liquids in the lab and is especially Economically priced. Use the “recycling mode” for an Ecological air-purging and draining without any loss of reagent!

  • high quality precision instrument, made in Germany
  • all-purpose dispenser, universal chemical compatibility
  • highest accuracy and precision, our error ranges are better than the DIN EN ISO 8655-5 requirements
  • most affordable price in its class
  • direct displacement piston system, ideal for crystalline solutions
  • robust and stable, made of high quality materials e.g. platinum springs
  • 0% loss of reagent by pumping in a closed circuit
  • 100% drip-free due to our unique anti-drip system
  • 360° rotatable valve block for added safety
  • one handed operation
  • flexible by using different bottle adapters
  • easy to clean, completely autoclavable at 121°C
  • 250ml dispenser available
  • individual certificate and serial number
  • DE-M marked according to the German calibration law

Quick and precise volume setting: Adjusting the volume of LABMAX eco is very simple: Just push the quick-adjust knob – slide to the desired volume– release – that’s all!

Perfect air-purging mechanism for 0% reagent loss: Turn the discharge tube at 90°. Remove (purge) trapped air without reagent loss by pumping in a closed circuit: The reagent flows back into the bottle! After pumping 2 – 3 times the dispenser is free of air and ready to use. This special feature helps not only to save residual reagent but also when accidentally setting the wrong volume!


5370002, 5370003, 5370004, 5370005, 5370006, 5370007

Other Features

360°-turn for your added safety: No matter how much you tighten LABMAX airless, you can always redirect the discharge tube by simply turning the valve block to the desired position. This way the label of the bottle is always visible. This feature works for all our adapters. Adapters for different bottle threads can stay on the bottle!

100% drip-free system for your safety: By turning the discharge tube at 180° all liquid flows back into the bottle. LABMAX airless is completely closed and no accidental discharge can occur by inadvertently moving the piston. There is absolutely no dripping possible!

Automatic air-purging: To ensure accurate volume it is necessary that the device is free from air before dispensing. All LABMAX airless models have an automatic air purging system. Air, lighter than liquid, passes off the device automatically through the special ejection channel and discharge tube. A contamination of the bottle content is not possible.

The components having direct contact with the reagent are made of chemical resistant materials: platinum spring, ceramic valve balls, PTFE piston, borosilicate glass 3.3 cylinder, borosilicate glass 3.3 valve
