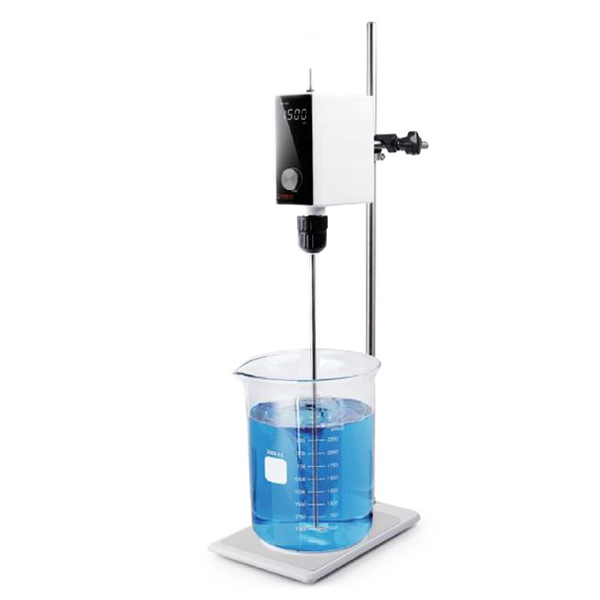

LABTEX 40L Overhead stirrer

LABTEX 40L Overhead stirrer

STANDARD FEATURES
  • Compact, Lightweight and Sleek design
  • Speed Range: 50rpm~2000rpm
  • Provides constant speed even with changeling viscosities of the sample
  • Wide LED display for precise speed adjustment and monitoring
  • LED display shows actual and set speed alternately
  • Overload protection system if the torque exceeds the stirrer ratings
  • Safety circuits: Circuit auto cut-off feature for additional protection
  • Maintenance-free Brushless DC motor
  • The through-shaft housing design allows forays impeller height adjustments and thereby less downtime in between sample changes
Liters

OHS-40D

Other Features

Max. torque[N·cm]    40
Speed range under nominal load[rpm]     0/50-2000
Viscosity max[mPas]    50,000
Chuck Diameter Range[mm]    0.5-10
Max. stirring quantity (H20)[L]    40
Voltag [V]    100-240
Frequency[Hz]    50/60
Max. input power[W]    145
Speed display    LED
Overload protection    YES
Motor protection    YES
Dimensions (D×W×H)[mm]    71×174×240
Weight [kg]    2.5KG
Protection class according to DIN EN60529    IP42
Permissible ambient temperature [°C]    5-40
Permissible relative humidity [%]    80
