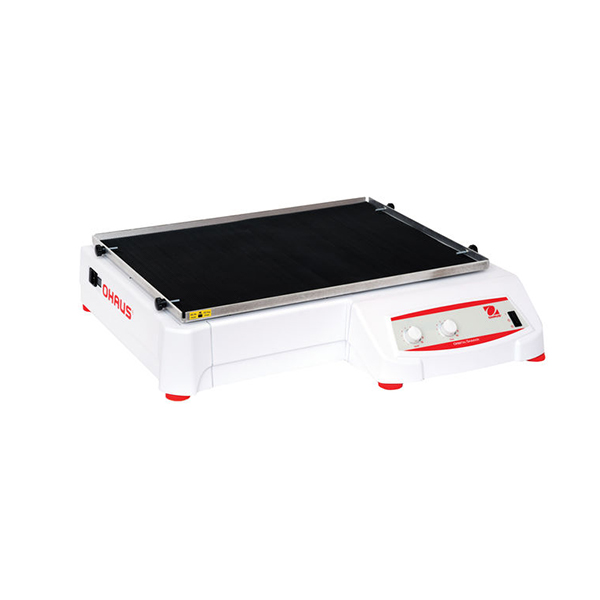

25-500rpm 25mm Analog Heavy Duty Orbital Shaker
25-500rpm 25mm Analog Heavy Duty Orbital Shaker
OHAUS Heavy Duty Shakers are designed to handle a wide range of applications no matter how difficult the task. Powerful, convenient shakers provide consistent orbital shaking action. Digital models offer accurate speed control for applications that demand repeatable results. Non-digital models are an economical alternative. Maximize throughput and efficiency in your laboratory – eight models with load capacities ranging from 16 to 68 kg.
STANDARD FEATURES
| Motion | Orbital, 25 mm |
| Capacity | 22.7 kg |
| Speed Range | 25 rpm – 500 rpm |
| Tray Size (LxW) | 18 in x 24 in (45.7 cm x 61 cm) |
| Control | Analog |
| Drive System | Triple Eccentric;Â Brushless DC Motor |
| Calibration | Speed calibration |
| Dimensions | 24 in x 5.9 in x 26.7 in (61 cm x 14.9 cm x 67.8 cm) (LxHxW) |
| Net Weight | 108 lb (49 kg) |
| Orbit | 1 in (25 mm) |
| Power | 120V, 5A, 50/60Hz |
| Power Consumption | 75 W |
| Safety Certification | TUV |
| Speed Accuracy | ±1 rpm, Above 100 rpm ±1% of set speed |
| Speed Range | 25 rpm – 500 rpm |
| Timer | 1 minute – 120 minutes |
| Tray Construction | Aluminum |
| Working Environment | 32°F – 104°F, 80% RH, non-condensing (0°C – 40°C, 80% RH, non-condensing) |
Other Features
Applications
Cell Cultures, Solubility Studies, Extractions, Bacteria & Yeast Cultures and Suspensions, Staining/Destaining, Immunoassays, Protein Studies, Blotting Techniques
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously and control knobs with dial markings (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
RS232 interface provides two-way communication for data logging and unit control (digital models)
Construction
Cold rolled steel (CRS)
Design Features
Built-in tray (11 x 13 inch or 28 x 33 cm) with a non-slip rubber mat (included)
