Drying oven SWON gravity-air SmartLab

Ideal for:

  • drying, baking, conditioning, curing, pre-heating and aging
  • optimized air flow by gravity-air mechanism
  • 3-side heating ensures temperature uniformity and accuracy
  • ambient +5°C to 230°C range, fluctuation of ±0.5°C at 100°C
  • stainless steel chamber
  • powder-coated steel body and glass wool insulation
  • available with viewing window (SWON-W models)
  • new compact body design
  • storage function for set values of temperature and timer
  • 2x stainless steel wire shelves included
  • CE & UL/CUL certified and unique serial number for tracing

Temperature uniformity successfully tested by ASTM standards:All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.

Green product:All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

Gravity-air:The ovens gravity-air flow is established by heating up air in a pre-heating zone by heating elements on the bottom, left and right side. The pre-heated air will be restrictively provided into the chamber.

IQ/OQ available


32L, 50L, 105L, 155L, 105L (with viewing window), 155L (with viewing window)

Other Features

  • Safety mechanism:

    • push alarm service to your smartphone
    • locking mode
    • overheat and over-current protection
    • sensor error detection

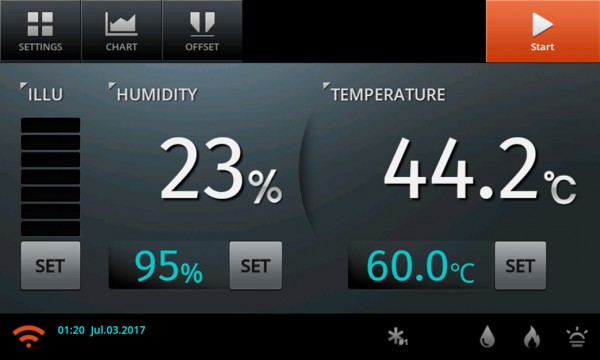

    • Smart-Lab™ controller with 4? full touch screen TFT LCD:
      • WiRe™ app service, remote control system
      • variable program settings
      • self-diagnostic function
      • automatic data recording
      • data transfer to PC by USB memory
      • Internet connectivity with WiFi
