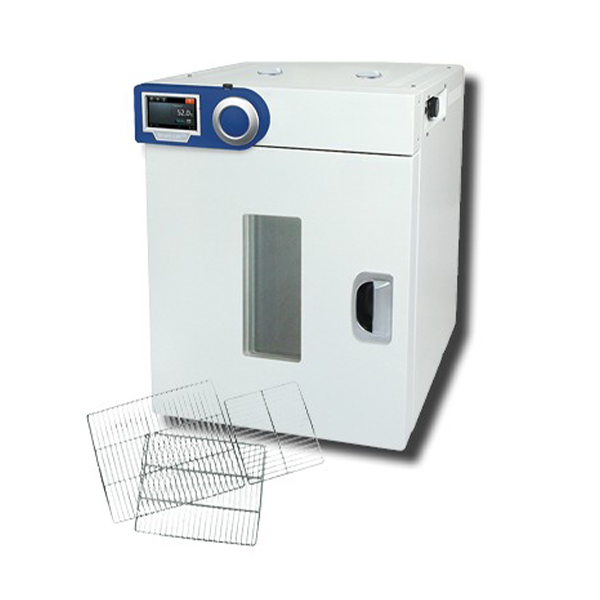

Drying oven SWON forced-air SmartLab

Drying oven SWON forced-air SmartLab

Ideal for:

  • drying, baking, conditioning, curing, pre-heating and aging
STANDARD FEATURES
  • optimized air flow by gravity-air mechanism
  • 3-side heating ensures temperature uniformity and accuracy
  • ambient +5°C to 250°C range, fluctuation of ±0.3°C at 100°C
  • stainless steel chamber
  • powder-coated steel body and glass wool insulation
  • available with viewing window (SWOF-W models)
  • new compact body design
  • storage function for set values of temperature and timer
  • 2x stainless steel wire shelves included
  • CE & UL/CUL certified and unique serial number for tracing

Temperature uniformity successfully tested by ASTM standards: All incubators and ovens are thoroughly tested, using 12 temperature sensors and the latest instruments to obtain validation, which corresponds to international standards.

Green product: All incubators and ovens achieve minimum power consumption by using heating elements consuming minimum power adjusted for the capacity and temperature of the chamber.

Forced-air: The ovens forced-air flow is established by a very effective fan installed in the rear of the chamber sucking air from the chamber into the pre-heating zone where heating elements on the bottom, left and right side heat up air. The pre-heated air is uniformly and quickly provided into the chamber by a special side and bottom structure.

IQ/OQ available

Liter

DH.SWOF05050 – 50L, DH.SWOF05105 – 105L, DH.SWOF05155 – 155L

Other Features

  • Safety mechanism:

    • push alarm service to your smartphone
    • locking mode
    • overheat and over-current protection
    • sensor error detection

    Controller:

    • Smart-Labâ„¢ controller with 4? full touch screen TFT LCD:
      • WiReâ„¢ app service, remote control system
      • variable program settings
      • self-diagnostic function
      • automatic data recording
      • data transfer to PC by USB memory
      • Internet connectivity with WiFi
