PC 200 Partcal Counter

PC 200 Partcal Counter

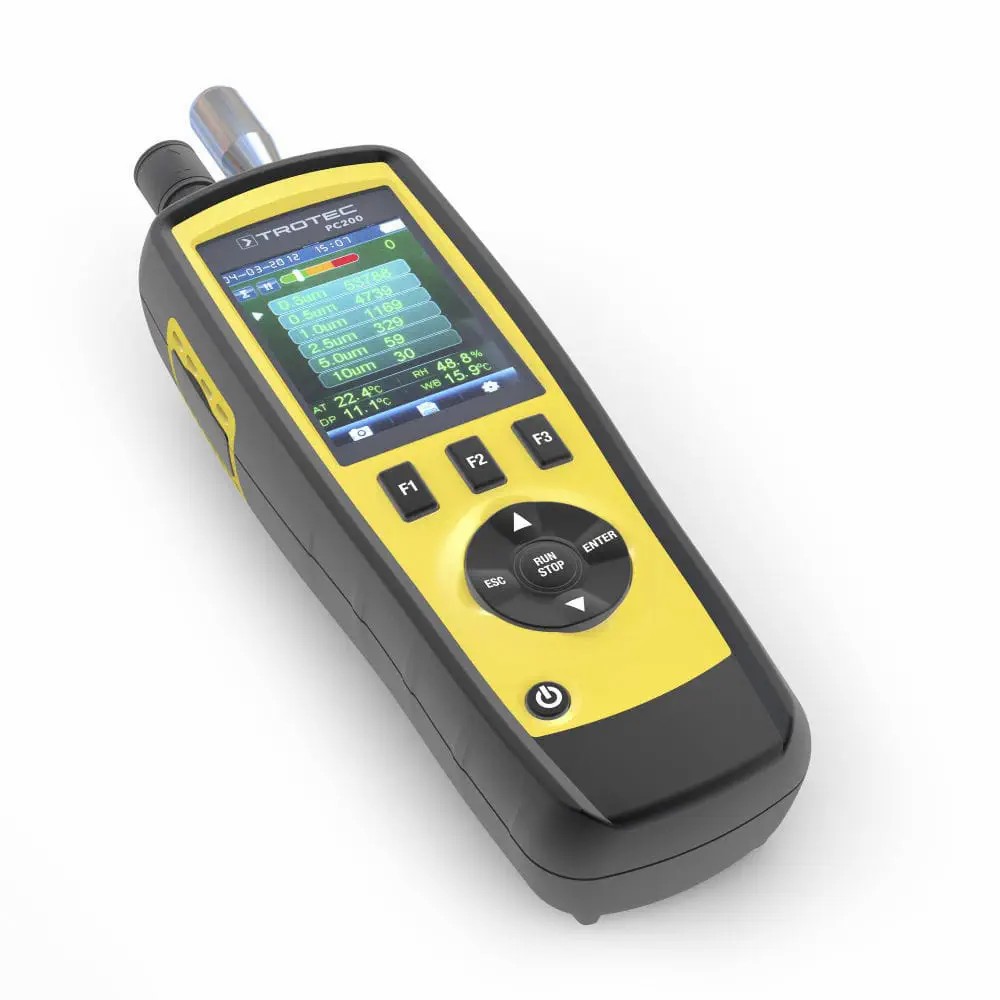

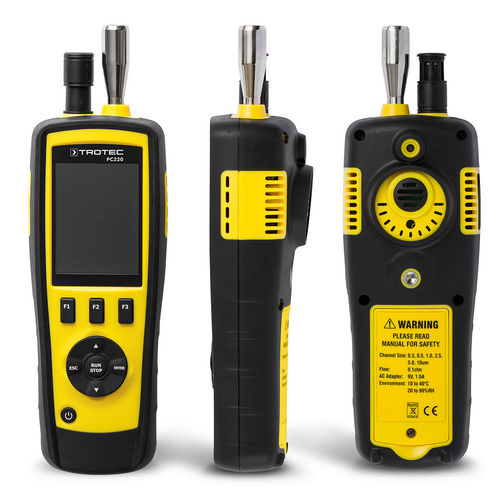

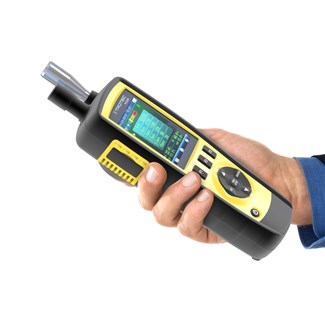

The PC220 is an ergo­nomic, hand-held measuring device with a built-in photo and video func­tion, which allows the user to monitor air par­ticles and gather environ­mental data directly on the spot. With its ISO 21501-4 conformity, the PC220 can be used for various measuring functions from testing cleanrooms and filter efficiency to monitoring burdens at workspaces and quality assurance. All measured values of the six particle size channels are shown simultaneously on the 2.8 inch colour LCD display .An additional colour indicator display with automatic acoustic alarm makes it easier to quickly detect critical particle concentrations.

STANDARD FEATURES

Availability: 100 in stock

Other Features

  • Measuring channels: 6
  • Channel sizes: 0.3 μm, 0.5 μm, 1.0 μm, 2.5 μm, 5.0 μm, 10.0 μm
  • Counting modes: Concentration, cumulative, differential
  • Counting efficiency: 50% at 0.3 μm 100% for particles > 0.45 μm
  • Flow rate: 2.83 l/min (0.1 ft³/min), controlled by internal pump
  • Zero count: < 1 particles / 5 min.
  • Coincidence loss: 5%, 2 million particles per ft³ (28.3 litres)
  • Light source: Laser class 3B, wave length 780 nm, 90 mW
  • Sample inlet: Isokinetic probe
