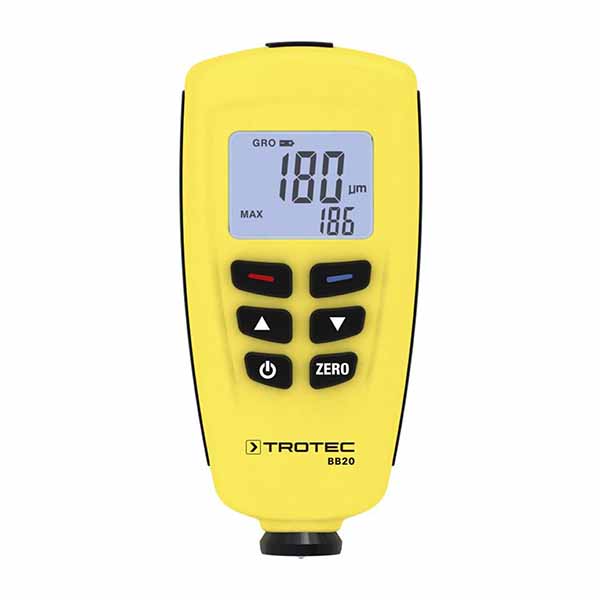

BB20 Coating Thickness Meter
BB20 Coating Thickness Meter
The BB20 has an innovative dual sensor which enables you to measure the thickness of non-magnetic coatings like paint and varnishes, synthetic coatings, zinc coatings, enamel or chrome as well as steel or iron and non-iron metals like aluminum, magnesium, titanium
STANDARD FEATURES
- Dual sensor designed to measure the thickness of non-magnetic coatings on all magnetic and non-magnetic metals
- Broad measuring range from 0 to 1,250 µm
- Alarm function that alerts the user when predefined thickness thresholds have been exceeded
- A variety of useful statistical functions like minimum, maximum or average coating thickness
- Two-point calibration for high level of accuracy
- Memory for up to 400 measuring values
- USB interface for PC measuring data transfer
- Can be used with one hand only
- Backlit display
- Auto power off
- Excellent value for money
Other Features
- Sensor: Ferromagnetic surfaces
- Functioning principle: Magnetic induction
- Guaranteed tolerance: (±3% + 1) µm of the measuring value
- Bending radius minimum (surface): 1.5 mm
- Smallest measuring area: Ø 7 mm
- Critical primary layer thickness: 0.5 μm
- Measuring range: 0 to 1,250 µm
- Accuracy: max. 0.1 µm
