Defender® 5000 Floor Scales - DF52

Defender® 5000 Floor Scales - DF52

Prime German quality Floor Scales Full-fill Even the Most demanding Industry Applications

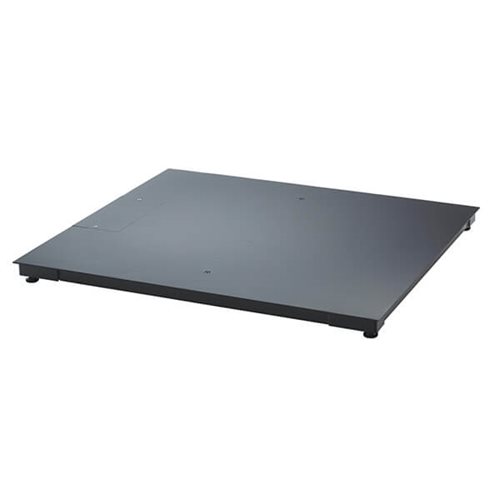

The OHAUS next generation Defender 5000 Series Floor Scale is a solid lineup of floor and pit mount scales that do not compromise on quality for industrial applications. Powered by four stainless steel IP68 hermetically sealed load cells that will withstand years of daily usage in industrial environments, these scales offer a unique combination of affordability, versatility and quality that your company can depend on for years and years.
  • OHAUS Defender 5000 Series Floor Scale is equipped with new TD52 series indicator with an easy-to-use keypad, large backlit display and plain text on-screen prompts which guide you through operation.
  • Four IP68 electro-polished stainless steel load cells that are laser-weld hermetically sealed and OIML approved are standard on all models.

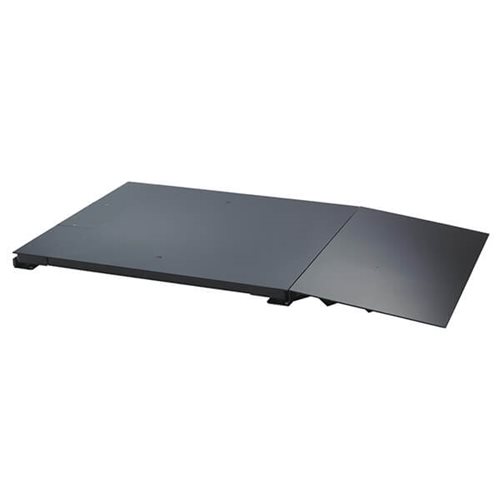

  • Combination floor-pit mount design provides versatility for portable or stationary placement, above or below ground installation.
Defender® 5000 Floor

DF52P1500F1LX, DF52P1500F1LX-M, DF52P1500F1R, DF52P1500F1R-M, DF52P1500F1X, DF52P1500F1X-M, DF52P1500F1XV, DF52P1500F1XV-M, DF52P3000F1LX, DF52P3000F1LX-M, DF52P3000F1X, DF52P3000F1X-M, DF52P3000F1XV, DF52P3000F1XV-M, DF52P300F1R, DF52P300F1R-M, DF52P300F1S, DF52P300F1S-M, DF52P600F1LX, DF52P600F1LX-M, DF52P600F1R, DF52P600F1R-M, DF52P600F1S, DF52P600F1S-M, DF52P600F1X, DF52P600F1X-M

Other Features

Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic Weighing (Display Hold)
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Stainless steel indicator, bead-blasted stainless steel platform, IP67 stainless steel junction box with top access, IP68 OIML R60 electro-polished stainless steel load cells, available pit frames mounting
Design Features
Structural channel bracing and pendulum design feet with removable rubber cap, 150% overload protection. Checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, auto tare.
