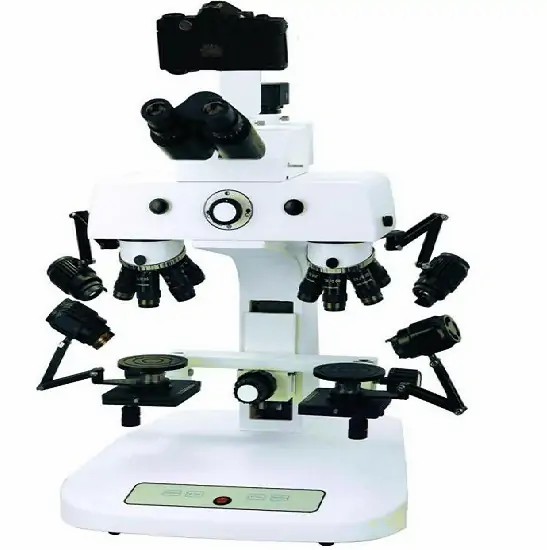

BSC-300 Comparison Microscope
BSC-300 Comparison Microscope
BSC-300 Comparison Microscope can observe two objects with a pair of eyepiece at the same time. Using field cutting, jointing and overlapping methods, two (or more two) objects can be compared together. BSC-300 has clear image, high resolution and can identify tiny differences between objects accurately. BSC-300 has excellent optical performance and complete comparison function, it is suitable for various comparison demands, so it has a very wide range of applications. It is basically used in forensic science, police schools and related departments.
STANDARD FEATURES

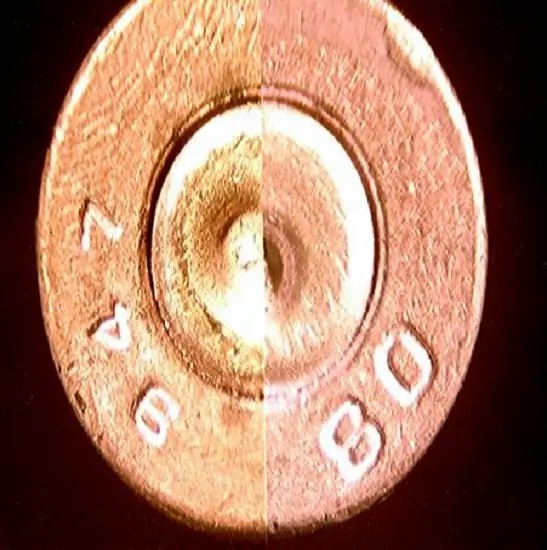

- Can be used for Left or Right single view field observation, overlapping view field observation, segmentation and jointing view field observation.
- With sextuple nosepiece, comes with 0.5×, 1×, 1.5×, 2×, 4×, 6× objectives, nosepiece has stop clicks, comfortable to change the objectives.
- Stage size: 100mm×100mm, Moving range: The transverse, longitudinal, vertical directions are 0-62mm, horizontal rotation 0 ° -360 °, stage inclined to any direction of 0 ° – 60 °.
- Two stages can be adjusted horizontally at the same time, moving range: 0-60mm.
- Coarse lifting range of 0 – 60mm.
- Equipped with 12V/50W air-cooled high power LED lamps, light intensity is adjustable.
- Polarizing attachment, used to eliminate stray and glare light.
- Coaxial illumination device(optional), used for observation of deep hole, small hole and smooth surface.
- With C-mount video attachment, digital cameras can be used for synchronous observation, images and videos can be saved and analyzed.
- Â With Photo attachment, Nikon or Olympus DLSR cameras can be used to take pictures.
