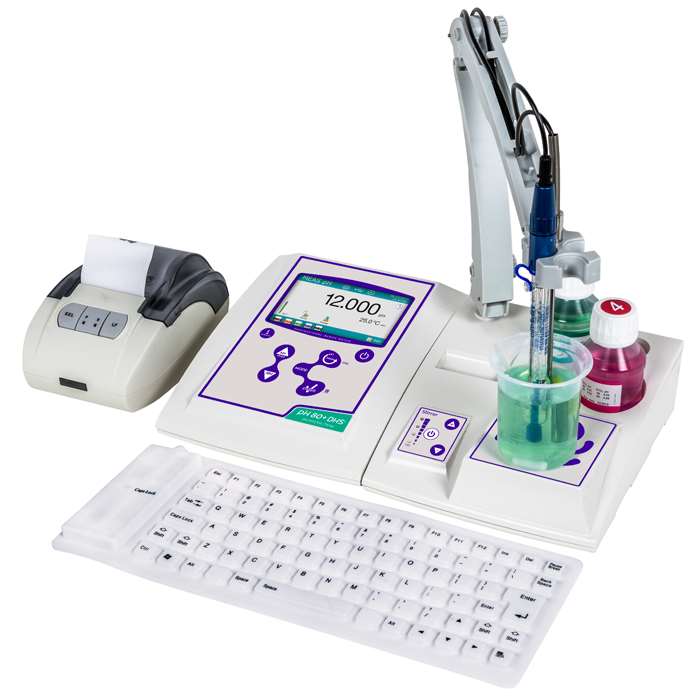

pH 80+ DHS PH Meter

pH 80+ DHS PH Meter

pH and Ion Meter digital counter microprocessor, resolution ± 0.1 / 0.01 / 0.001 pH . Large backlit color graphic display. Manual or automatic temperature compensation with NT 55 probe . Manual and automatic data logger function . Memory / recall up to 1000 data with date / time according to GLP . Automatic calibration from 1 a5 points for pH according to GLP with date and time . Buffers selectable NIST, USA, DIN or user definable (5 values). ISE calibration from 2 to 5 points. Calibration report and innovative graphical representation of sensor conditions. Visualization on the display of the buffers used for calibration and of the electrode status. Intuitive management of parameters via icons . Multilingual menu. Entering company data, operator ID, sample ID and sensor ID via external keyboard (included). Functions for setting alarms and display in analogue format, “Freeze-reading” and “Stability” with titration mode and timed stability for ISE. Recalibration alarm, self-diagnosis messages. Passwordalphanumeric for calibration management and memory deletion. 2 USB outputs for connecting external keyboard (included) and PC. RS232 port for printer

STANDARD FEATURES

GLP calibration         Yes

DHS compatibility     Yes

PC communication   Yes

Printer connection      Yes

Stirring speed control           Independently controlled agitator

Measurement stability criteria         3 levels

Display                        High definition color TFT, backlit

GLP                              Yes

IP protection degree        IP 54

Online help                  Yes

Electrode status indication         Yes, with icon

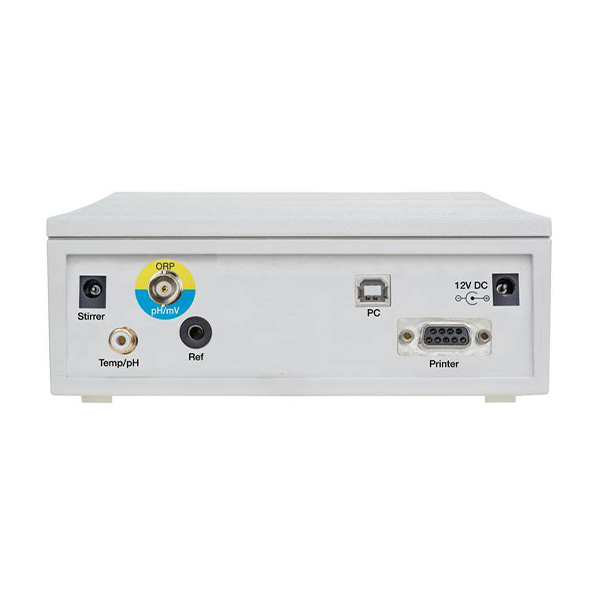

Entrances                     BNC – RCA – 4 mm banana

Memory / Datalogger                  1000 data

Multilingual                  Eng – Ita – Deu – Esp – Fra – Cze

Output                           USB – USB type B – RS232

Password                      Yes, 4 alphanumeric characters

pH 80+ DHS PH Meter

50001402

Other Features

Power supplies

Supply
100 – 240 V / 50 – 60 Hz

Dimensions and weight

Dimensions (LxWxH)
324 x 185 x 56 mm
Weight
1255 g
