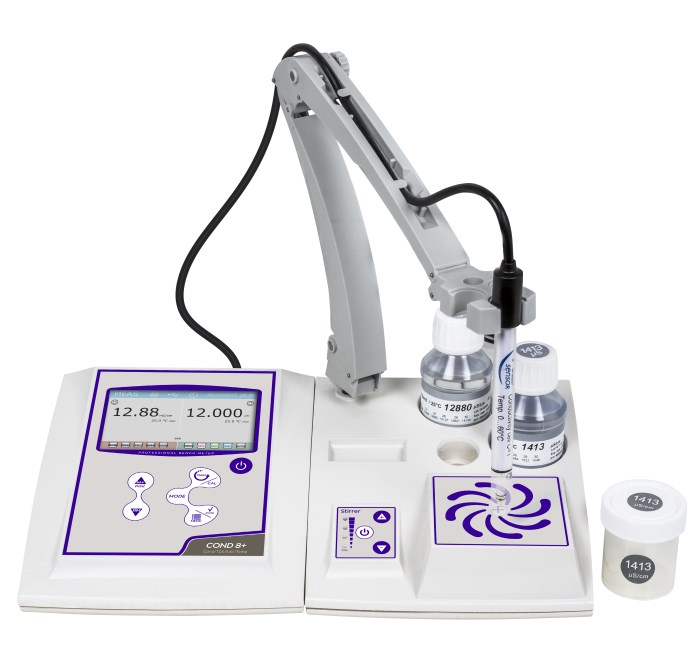

COND 8+ Conductivity meter
COND 8+ Conductivity meter
Complete with 2301T epoxy conductivity cell with 2 electrodes (C = 1) with built-in temperature probe, electrode holder support, 2 calibration standards and power supply. Without agitator .
STANDARD FEATURES
Microprocessor digital bench conductivity meter with large backlit color graphic display, resolution 0.01 µS .
Automatic and manual calibration with recognition of 4 conductivity standards (84; 1413 µS, 12.88 and 111 mS) from 1 a4 points with calculation of the different cell constants and a standard defined by the user.
Automatic scale change, automatic and manual temperature compensation (0 … 100.0 ° C) with NT 55 probe.
Reference temperature (15 … 30 ° C), Linear temperature coefficient (0.00 … 10.00%), Cell constant (C = 0.1-1-10.0) selectable.
Display of the standards used for calibration on the display.
Manual and automatic Data Logger function.
Memory / recall up to 1000 data with date / time according to GLP.
Self-diagnosis messages, 2-electrode cell input. Intuitive management of parameters via icons.
Multilingual Italian menu included. Indication of the stability of the measurement. Recalibration alarm, self-diagnosis messages.
Numeric password for calibration management and memory deletion. 1 USB output for PC connection.
Other Features
Features
PC communication
Yes
Printer connection
Yes
Cell constant selectable
0.1 / 1/10
Display
High definition color LCD, backlit
GLP
Yes
IP protection degree
IP 54
Entrances
BNC – RCA
Memory
1000 data
Multilingual
Eng – Ita – Deu – Esp – Fra – Cze
Output
USB – USB type B – RS232
Password
Yes, 4 alphanumeric characters
Calibration points Cond
1 … 4
Calibration report
Yes
Buffers recognized Cond
84 µS – 1413 µS – 12.88 mS – 111.8 mS – 1 user value
Calibration expiration timer
Yes
Cell type
2 rings
Power supplies
Supply
100 – 240 V / 50 – 60 Hz
Dimensions and weight
Instrument dimensions
162 x 185 x 56 mm
Instrument weight
709 g
