| BP 21WP Pyrometer | 3.510.003.031 |
|---|
BP 21WP Pyrometer
BP 21WP Pyrometer

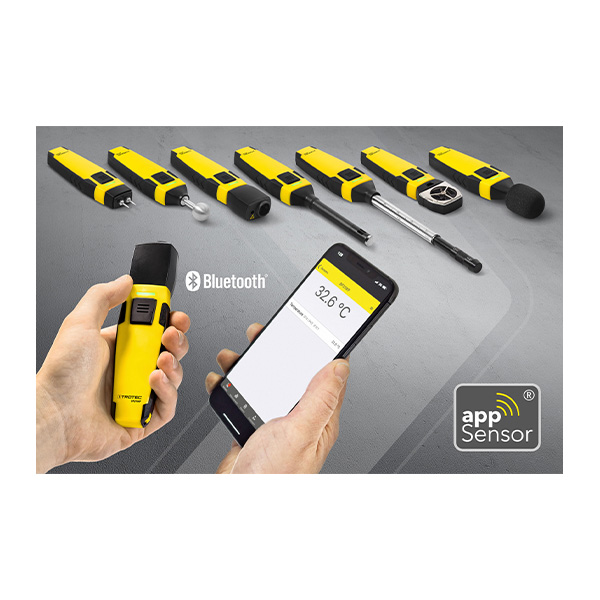

The appSensor BP21WP is a pyrometer permitting non-contact, infrared surface temperature measurements when used in combination with the MultiMeasure Mobile app.
The equipment was designed for a universal range of applications and a convenient measured value determination. In addition to an optical resolution of 10:1 and a temperature measuring range between -30 °C and +250 °C the BP21WP also features a useful multi-point laser which automatically visualizes the size of the measuring spot. The preset degree of emission saves you the trouble of making manual adjustments and covers a wide variety of materials. The measuring device BP21WP is immediately ready for use, it can be connected to the app without the slightest effort and then displays all the measured values on the mobile terminal device.
STANDARD FEATURES
- Professional sensors for precise measuring results
- Foolproof connection of the app via Bluetooth with visual connection confirmation by means of an LED at the device
- Wireless control of the measuring devices and display of data via app
- Simple measured value detection even at remote locations since the values do not have to be read directly from the measuring device
- Additional determination and indication of minimum, maximum and average values
- Hold, logging and alarm functions
- Wrist strap for safe handling included in the scope of delivery
- Practice-optimized German industrial design – protected design patent
Other Features
- Optical resolution: 12:1
- Temperature range: -35 °C to +800 °C
- Accuracy max.: ± 2% from the measured value or ± 2 °C
- Smalles measuring spot-Ø: 12.5 mm (distance 150 mm)
- Resolution: 0.1 °C
- Response time: 0.3 seconds
- Spectral sensivity: 6 – 14 µm
- Power supply: 9V-block battery
- Dimensions (l x w x h): 108 x 45 x 150 mm
- Weight: 177 g
