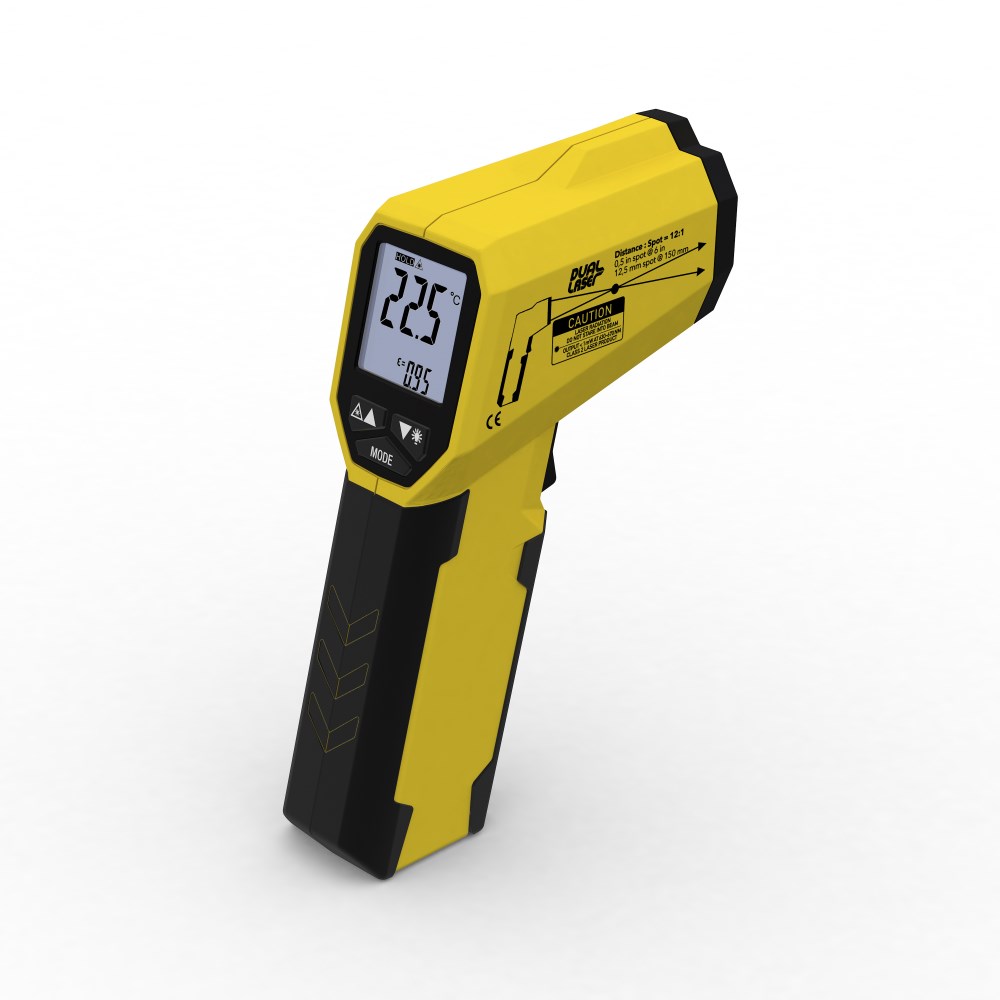

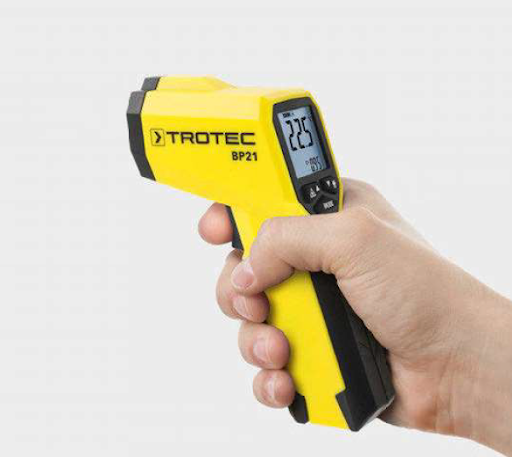

BP 21WP Pyrometer

BP 21WP Pyrometer

The BP21 convinces with its first class performance data in this device class, for example a wide temperature range, an optical resolution of 12:1, a material specific adjustable emission dagree and the innovative dual laser, which automatically visualizes the measuring spot size.
It is ready for use in a few seconds and captures fast and reliable temperature measurements in a range of -35 °C to +800 °C.
The BP21 is not only able to freeze the current value – it can also depict maximum and minimum values and be programmed with individual threshold values, which automatically sound an acoustic alarm when they are exceeded.

STANDARD FEATURES
BP 21WP Pyrometer

3.510.006.031

Other Features

  • Optical resolution: 12:1
  • Temperature range: -35 °C to +800 °C
  • Accuracy max.: ± 2% from the measured value or ± 2 °C
  • Smalles measuring spot-Ø: 12.5 mm (distance 150 mm)
  • Resolution: 0.1 °C
  • Response time: 0.3 seconds
  • Spectral sensivity: 6 – 14 µm
  • Power supply: 9V-block battery
  • Dimensions (l x w x h): 108 x 45 x 150 mm
  • Weight: 177 g
